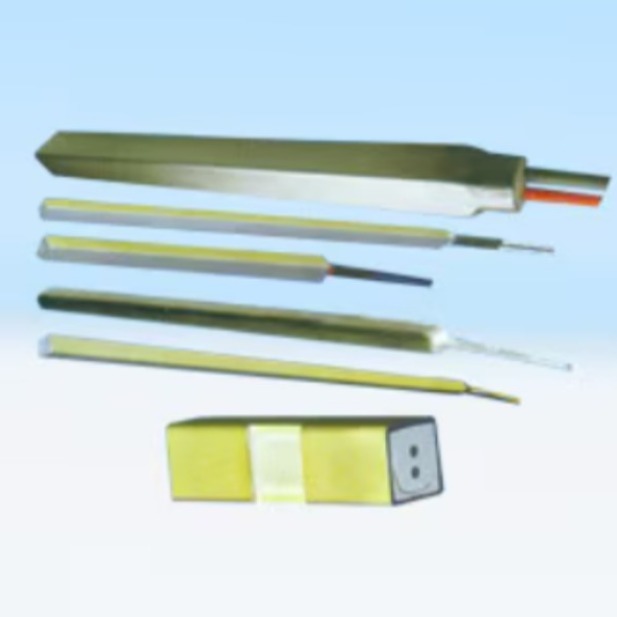

When heat needs to be generated inside a metal component, mould, die, or machine part, a High Density Cartridge Heater can provide a compact heating solution. Unlike band heaters that fit around an external surface, cartridge heaters are typically inserted into accurately sized holes within the component being heated.
This configuration allows thermal energy to be concentrated close to the required area.
High density cartridge heaters are used across different manufacturing operations, including mould heating, dies, packaging machinery, sealing equipment, engineering systems, and process equipment. Their compact shape makes them particularly useful where available installation space is limited.
A cartridge heater usually consists of a resistance element, electrical insulation, and a metallic outer sheath. The design is intended to transfer generated heat through the sheath and into the surrounding component.
Several specifications determine whether a cartridge heater is appropriate:
- Diameter
- Heated length
- Overall length
- Voltage
- Wattage
- Watt density
- Lead-wire arrangement
- Terminal configuration
- Operating temperature
- Fit within the heater bore
The relationship between the cartridge heater and the bore is particularly important. An unsuitable fit can interfere with effective heat transfer. Bore condition, installation method, and the surrounding material should therefore be considered during heater selection.
Another common consideration is watt density. Increasing wattage is not automatically the right solution when a process needs faster heating. The heater, surrounding component, temperature controller, and process requirement should be considered as one thermal system.
For Pune manufacturers operating moulding, packaging, fabrication, processing, and special-purpose machinery, cartridge heaters can be valuable where localized heat must be integrated into a compact assembly.
Maintenance teams should retain heater specifications whenever possible. When an installed cartridge heater eventually requires replacement, records of its diameter, length, wattage, voltage, lead configuration, and application can significantly simplify identification.
Saket Enterprises works with industrial heater requirements for manufacturing applications in Pune and across Maharashtra. Application details can help determine the configuration needed for a specific machine or heating zone.
A high density cartridge heater should not be viewed simply as a metal heating rod. Its performance is influenced by bore fit, watt density, electrical configuration, temperature control, and operating environment.
Selecting these parameters carefully can support efficient heat transfer and stable process temperatures while reducing problems caused by incorrectly specified replacement heaters.
